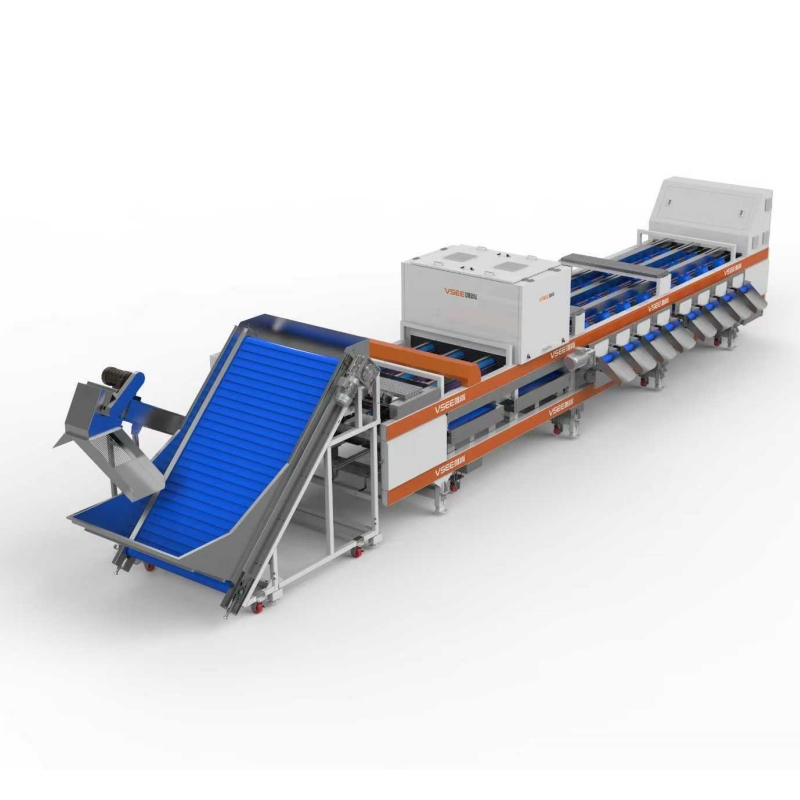

Intelligent macadamia nut sorting machine selects size, cracks and worm holes

Intelligent macadamia nut sorting machine selects size, cracks and worm holes

Intelligent macadamia nut sorting machine selects size, cracks and worm holes

VSEE intelligent sorting machine is excellently used in fruits and vegetables such as chestnuts, chestnut kernels, blueberries, cherry tomatoes, hawthorns, hazelnuts, pistachios, small potatoes, etc. It can accurately grade the size, color, cracking, maturity, etc. of fruits and vegetables to meet the requirements of various industries. grading needs, and automatic weighing and packaging are carried out to solve the constraints of manual sorting, weighing and packaging of such fruits, and high labor demand.

  • Item No :

    6GFJX-6
  • Order(MOQ) :

    one set
  • Payment :

    30% T/T deposit 70% T/T balance before shipment
  • Product Origin :

    China Anhui
  • Shipping Port :

    Shanghai
  • Lead Time :

    15-30 working days
  • Description

VSEE OPTICAL SORTING MACHINE

Different fruits and vegetables have different surface defects. VSEE intelligent photoelectric sorting machine can quickly and accurately identify defects

in fruits and vegetables based on parameters such as shape, color, location and size,

such as bug eyes, cracks, mildew spots, etc. in chestnuts; shrinkage, rust spots, rot, green and red fruits, etc.

in blueberries. Various defects in fruits and vegetables.

The system uses an exclusive algorithm to analyze visual inspection results to determine its internal and external quality

characteristics and achieve stable and accurate grading: ensuring uniform quality of each grade and stable quality of each batch, allowing

consumer terminals to enjoy consistent quality Taste.

Model (Item Number) 6GFJX-6 6GFJX-10
6GFJX-14
No. Of Chutes  6 10 14
Outline Dimentions(L*W*H)ММ 10300*2010*2250 10300*2850*2250
10300*3250*2250
Net Weight(kg) 4200 4700 5200
Power Consumption(kw)

14.6

17.7 19.5
Capacity(t/h) 0.6-2.0 1.0-3.5 1.5-5
Compressed Air Consumption(L/min) 1500-2500 1500-2800
1800-3800
AC Voltage:  220VAC/50Hz 220VAC/50Hz
220VAC/50Hz
Air Pressure (MPa) 0.6-0.8 0.6-0.8
0.6-0.8





Main Features



  1. Powerful imaging system: VSEE fruit and vegetable imaging technology has deep optical precipitation and can
    capture 360-degree images of each material with extremely high definition. Combined with the advanced technology
    in visual inspection and fruit and vegetable intelligent artificial algorithms in the past ten years, it provides fruit and vegetable core competencies.
  2. Master multi-spectral core technology: VSEE independently masters multi-spectral core technology and integrates traditional machine vision
    with complex measurement technology to ensure consistent, reliable, high-fidelity color imaging in fruit and vegetable sorting,
    playing a key role in fruit imaging control. , realizing the development of material identification from surface identification to internal detection.
  3. Sensors and cameras: High-speed smart cameras based on area array CMOS image sensors use multiple wavelengths when processing images,
    and each different wavelength is suitable for identifying various types of defects. The processing system adopts FPGA+ARM hardware architecture
    and has high-speed processing capabilities for large amounts of data.

  4. Easy-to-operate software: VSEE intelligent sorting technology includes a variety of enhanced functions, such as INTELUGENTSKIN and INTELHGENTMAP.
    Combined with a new and powerful AI grading algorithm, it can build a huge database for each type of fruit and vegetable, and use massive data to learn training results.
    The result is an extremely good fruit and vegetable grading and easy-to-use system.

  5. AI algorithm self-learning: Using the self-learning performance of the AI algorithm, operators can define grading standards in the system by simply
    clicking and dragging on the operation interface,
    thereby quickly improving grading quality standards. At the same time,
    it can greatly simplify the detection process and improve detection accuracy.

  6. Real-time recording: VSEE intelligent photoelectric selection machine can continuously record and learn grading data at the customer site,
    and continuously improve grading capabilities, allowing the machine to learn and classify different defects, so that the system can be easily adjusted and optimized,
    and the operator's workload can be reduced Set up to improve the accuracy of fruit and vegetable grading and establish a professional packaging grading system.
  7.






1.Who are we and why choose us?

We are Anhui Vsee Photoelectric Technology Co., Ltd. Our color sorter brand has a history of more than ten years, the market is all over the world, and the quality and service are guaranteed.

2.How to operate the machine overseas after purchase?

We will provide online teaching, and our engineers will guide online until the machine is debugged to customer satisfaction,and our engineers will guide you until you can operate the machine proficiently.
3.What is the warranty period and what if the machine breaks down?
We have a one-year warranty period, and the machine failure will be specially solved by engineers.
4. Can you supply the air compressor, air tank,air dryer and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air dryer,air tankand filters.
5.What payment methods do you support?
T/T and L/C are the best.
