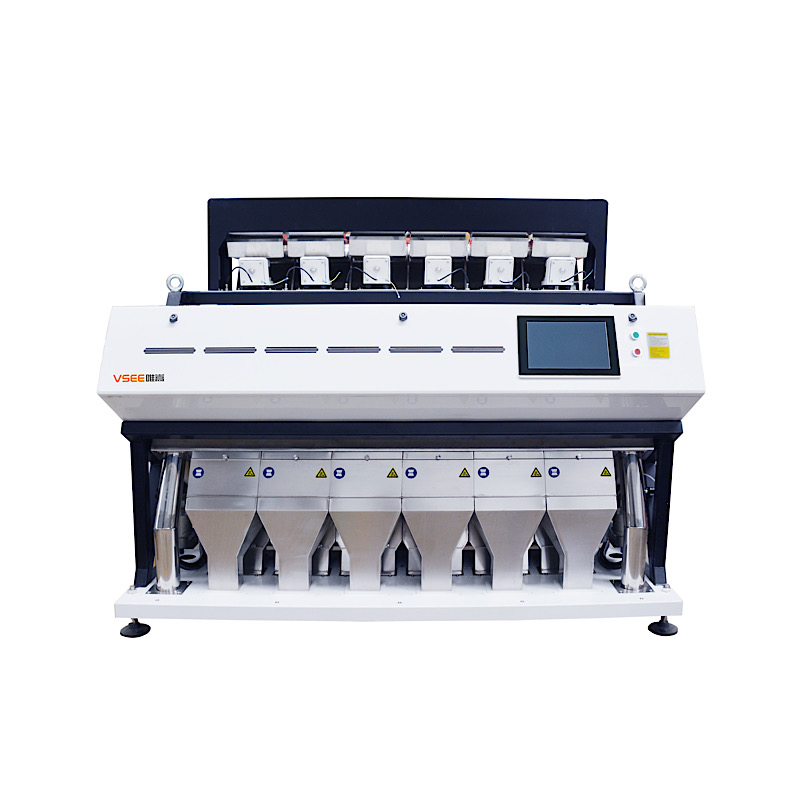

384 channels Factory Supply Automatic Rice Color Sorter Machine

384 channels Factory Supply Automatic Rice Color Sorter Machine
384 channels Factory Supply Automatic Rice Color Sorter Machine

384 channels Factory Supply Automatic Rice Color Sorter Machine

Do you want to improve the rice quality by rice color sorting machine?

Don’t miss using this high-tech intelligent rice color sorting machine to improve the quality of your rice, achieve perfect quality control with less effort, and ultra-high consistency.



  • Item No :

    6SXM-128(CCD)A
  • Order(MOQ) :

    1 set
  • Payment :

    30% T/T deposit 70% T/T balance before shipment
  • Product Origin :

    China Anhui
  • Color :

    Black
  • Shipping Port :

    Shanghai
  • Lead Time :

    15-30days
  • Weight :

    700kg
  • Size :

    1136*1582*1880
  • Description

Color Sorting Machine Working Principle

Color sorter is a machine that uses cameras and sensors to detect the color of objects. The objects are then sorted according to their color.

This is done by using a combination of light sources, optical filters, and image processing algorithms.

The light source illuminates the object and the optical filter allows only certain wavelengths of light to pass through.

This filtered light is then detected by an array of cameras which capture images of the object.

These images are then processed by an algorithm which determines the color of the object and sorts it accordingly.

Machine parameters:

Model (Item Number) 6SXM-128(CCD)A
No. Of Chutes  2
Outline Dimentions(L*W*H)ММ 1136*1582*1880
Net Weight(kg) 700
Power Consumption(kw) 2
Sorting Accuracy >99.99%
Compressed Air Consumption(L/min) 800-1800
Cameras Quantity:  4
AC Voltage:  220VAC/50Hz
Air Pressure (MPa) 0.4-0.8



Main Features



1. Intelligent Infrared distinction system.

Every chute with four camera positions,which can locate the infrared device and high speed super high definition true color 5400*3 CCD Sensor,

adopting the far infrared technology,supported by the imported high capacity high speed image processing chips,

it can ensure the high speed high definition detecting the defect in complicated environments.

2.30000+ rice and granules detecting every second.

Computing updating, TI high performance chips, accurately discover the quality of the sorting products. Take rice for example,

every second 30000+ rice granules detecting, accurately remove variety defects. The sorting accuracy are much higher,

processing capability are much stronger. It ensure the variety of defects, tiny spot, light trace are easily discovered. The wisdom helps us “what you see is what you get”.

3.Illimitable sorting possibilities, start by “one button”pressuring.

Hundred of sorting profiles can be saved in machine machine, for the variety products for sorting, illimitable sorting possibilities,

“one button”start, “one button”profiles exchange, it can bring the illimitable sorting result for seperation the agricultural products.

4.Shadowless cold light source,automatic adjustable.

Extremely long life, low energy consumption intelligent shadowless cold light source, orthogonal spectrum technology,

make the image more visiable, more accuracy detection; the output luminance of light source are automatically adjustable,

it make the lights more stable with high quality. It is fully appliable for the camera to see and detect.

Global leading electromagnetic levitation solenoid valve, super high rapid response to the Algorithm results.

It can continuously working 12billion+ times, extremely long life, with low air consumption.

5.Newly special super width chute design.

Special technology chutes, applicable for universal materials, make the transfer more steady, more capacity.

Meanwhile there are slot-type and plate-type meeting various demands.

6.Mechnical reconstruction.

Reconstruction of the mechnical frame, the main part with special material, balancing whole frame bearing,

ensure the machine integrity. Working with the updated mechanism, it strength the base of the ultra-sorting.

7.Intelligent operation System.

Overall Large Screen HD Operation control panel, 1080P Super high resolution, system more stable,

more friendly Human-Machine-Interface panel, which gives high sensitivity instant fast reponse in the industrial environment.



1.Who are we and why choose us?

We are Anhui Vsee Photoelectric Technology Co., Ltd. Our color sorter brand has a history of more than ten years, the market is all over the world, and the quality and service are guaranteed.

2.How to operate the machine overseas after purchase?

We will provide online teaching, and our engineers will guide online until the machine is debugged to customer satisfaction,and our engineers will guide you until you can operate the machine proficiently.
3.What is the warranty period and what if the machine breaks down?
We have a one-year warranty period, and the machine failure will be specially solved by engineers.
4. Can you supply the air compressor, air tank,air dryer and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air dryer,air tankand filters.
5.What payment methods do you support?
T/T and L/C are the best.
